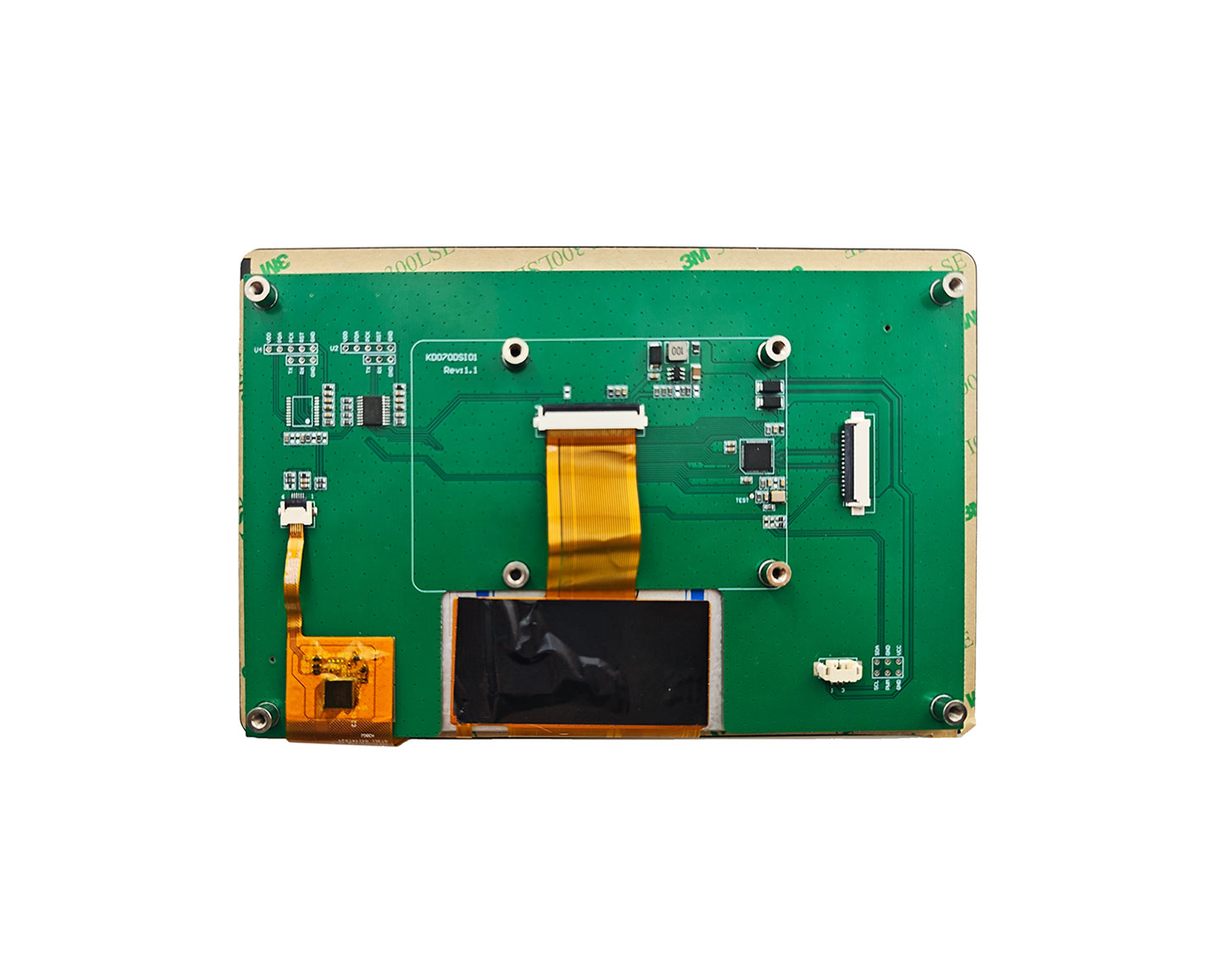

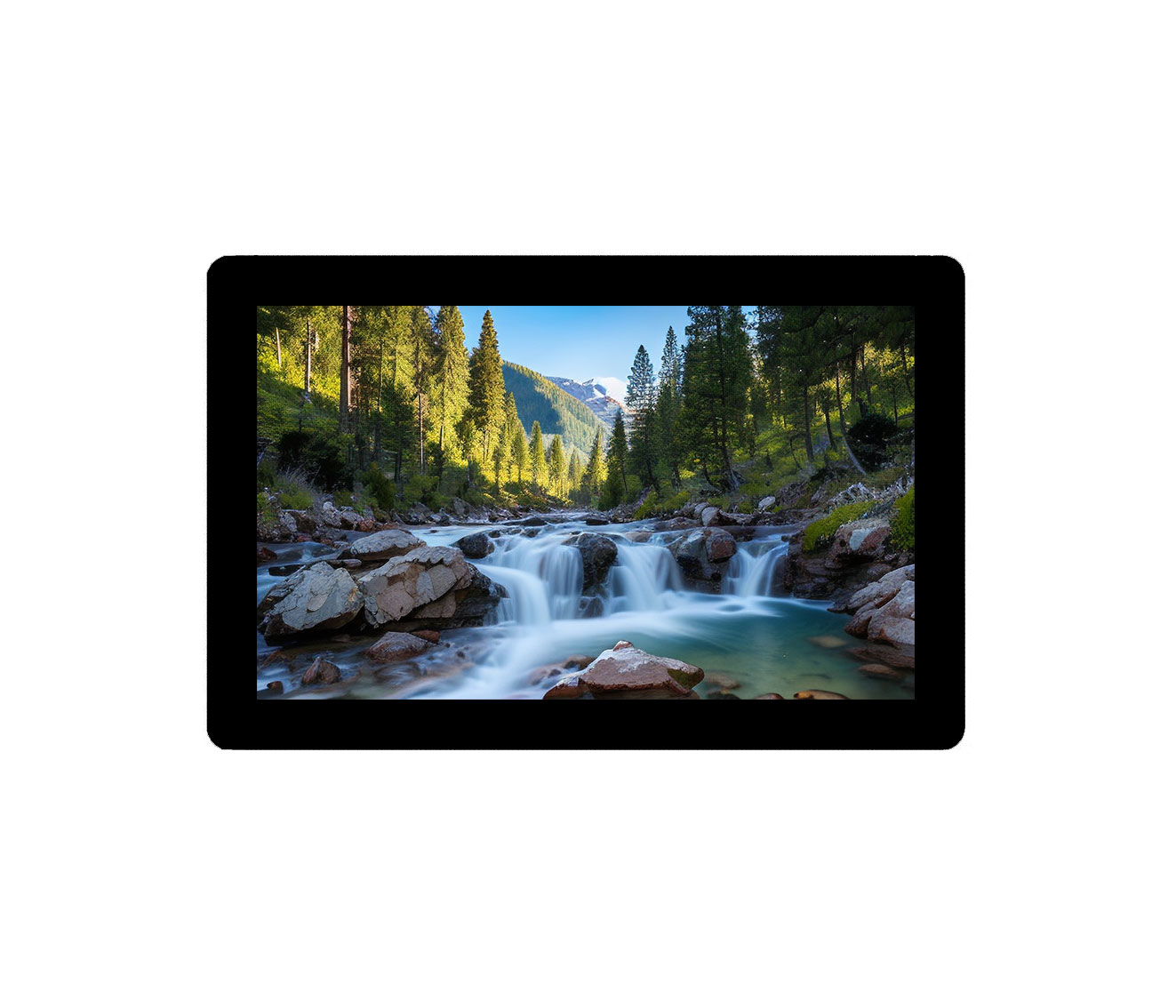

7.0 inch 800×480 IPS MIPI DSI TFT LCD Display for Raspberry Pi (800nits, Plug-and-Play)

Name: 7.0 inch 800×480 IPS MIPI DSI TFT LCD Display for Raspberry Pi (800nits, Plug-and-Play)
Brand: OPK Display
SKU: OPK-RPI-70-800X480-800N

7.0 display module, 800*480 resolution, MIPI DSI interface, 800+ brightness. Suitable as a starting point for LCD, controller board, cable, touch or cover glass RFQ matching.

800*480 MIPI DSI

Back to catalogue

7.0 inch 800×480 IPS MIPI DSI TFT LCD Display for Raspberry Pi (800nits, Plug-and-Play)

Displays For Raspberry Pi

7.0 inch 800×480 IPS MIPI DSI TFT LCD Display for Raspberry Pi (800nits, Plug-and-Play)

7.0 display module, 800*480 resolution, MIPI DSI interface, 800+ brightness. Suitable as a starting point for LCD, controller board, cable, touch or cover glass RFQ matching.

Model: OPK-RPI-70-800X480-800N

Request quote View all models

Key specifications

Part number: OPK-RPI-70-800X480-800N
Product family: Displays For Raspberry Pi
Size: 7.0
Resolution: 800*480
Interface: MIPI DSI
Brightness: 800+
Touch interface: I2C

Product introduction Detailed parameters

Overview

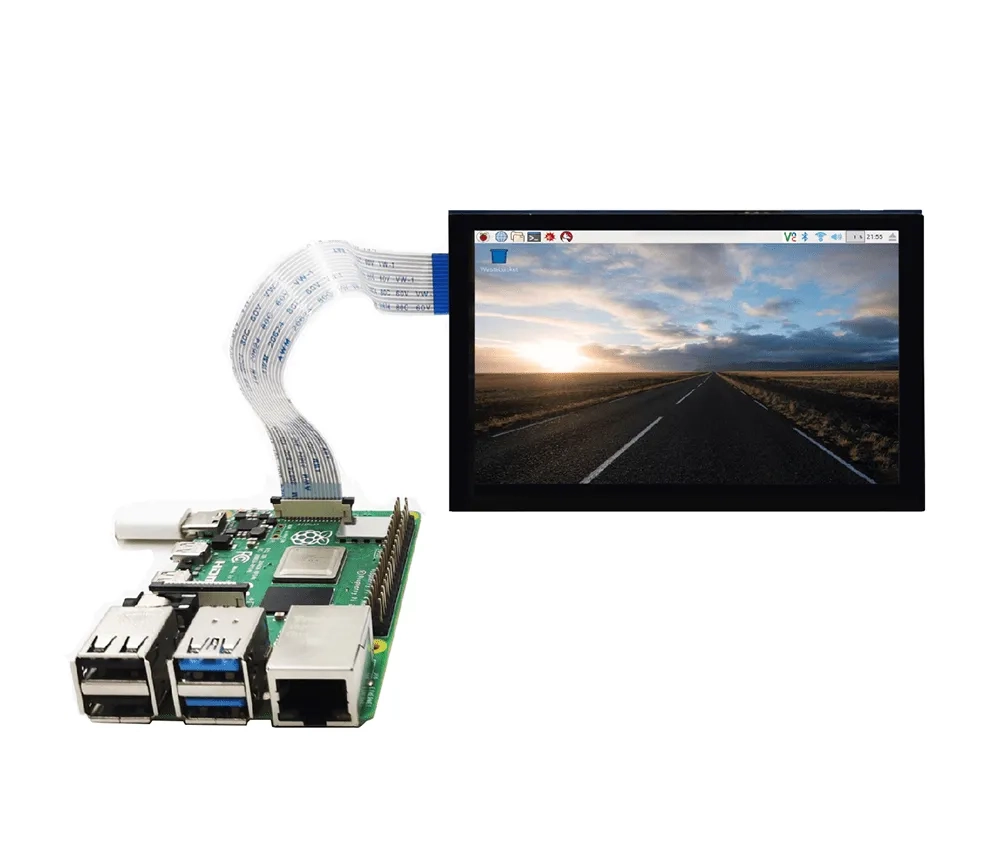

Raspberry Pi display integration overview

Raspberry Pi display module for embedded UI, HMI prototype and compact industrial control projects.

Core configuration: 7.0 inch class, 800*480 resolution, MIPI DSI interface.

Brightness range is listed as 800+ cd/m2 class for first-pass selection.

Confirm Raspberry Pi model, cable direction, enclosure space and touch requirements before sampling.

Feature

IPS TFT LCD

Excellent color reproduction
Wide viewing angle
Faster response time and quickly switch between different colors, reducing smearing and afterimages

High brightness and optical bonding

The high-brightness displays maintain content visibility in various lighting conditions, especially in strong outdoor light environments.

Most of our high-brightness displays can reach over 800cd/m², or some even go up to 2500cd/m².

High contrast enhances image sharpness and detail richness.
Sunlight Visible
High color reproduction

Optical Bonding

Optical bonding is a method that involves bonding TFT LCD and CTP using optical materials. This technique uses a transparent adhesive, such as Optically Clear Adhesive (OCA) or Optical Clear Resin (OCR) liquid optical adhesive, to bond the layers together, eliminating air gaps. This process improves the performance and readability of the display by:

Eliminating air gaps to reduce light reflection and scattering
Prevent dust and moisture from entering the display
Improve touch screen accuracy and sensitivity, reducingfalse touches and delays
Enhancing the display’s ability to withstand various harsh environments

Customize Service

We display your ideas!

Customize the LCM and CTP pinout
Customize FPC and Cable
Customize housing for easier assembly
We made the Cover Glass as your request. LOGO/Color/Shape/Thickness...
Customize the Backlight, brightness and thickness could be changed
Customize the interface, TTL/LVDS/MIPI/EDP/DP/HDMI/Type-C/VGA/USB-A

Parameters

Detailed parameter table

Use these values as a first-pass check before final RFQ confirmation.

Part number	OPK-RPI-70-800X480-800N
Product family	Displays For Raspberry Pi
Size	7.0
Resolution	800*480
Interface	MIPI DSI
Brightness	800+
Touch interface	I2C
Viewing direction	80/80/80/80(Typ)
Operating temp	-20°C~70°C
Storage temp	-30°C~80°C
Application	Raspberry Pi / CM4 / CM5 display integration
Bonding Type	OCA Optical Bonding
Item	Specification
LCD Size	7.0 inch
Active Area （mm）	152.4(H) x91.44(V)
Display Colors	16.7M
Outline Dimension（mm）	174.98 (H) x 114.02 (V) x 5.53 (D)
